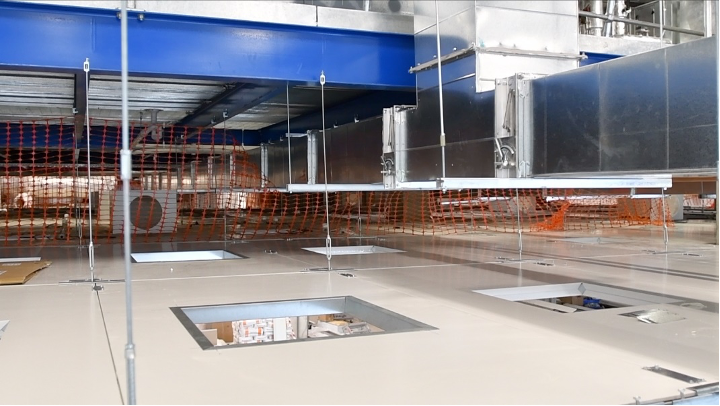

The WCP50 is a walkable ceiling made of modular and customized panels wit a strong acoustic sound index and one hour fire resistant. The panels consists of pre-coated color steel at the top and bottom side, with inside Rockwool or aluminum honeycomb core bonded between two MgO boards.
The entire ceiling system complies with the standards below
ISO14644 : Cleanliness of controlled environments ISO Class 5/6/7/8
EC-GMP : Cleanliness of controlled environments Grade A/B/C/D
C-GMP : Cleanliness of controlled environments Grade A/B/C/D
| Bottom side material | PE-coated steel 0.6 mm, coating thickness minimum 25µm, available in PVDF finish (VHP resistant) |
|---|---|
| Top side material | Pre-coated steel 0.5/0.6 mm |
| Available facings | Stainless steel 304/316, uPVC, powder coated galvanized steel, compact high pressure laminate |
| Protection | Plastic foil at the top- and bottom side to avoid damaging during transport and installation |
| Standard sizes | 1200 / 1170 x 2400 mm (width x length) |
| Panel thickness | 50 mm (other thicknesses according requirements) |
| Core material-1 | MgO at bottom and top side, thickness 5 mm |
| Core material-2 | Rockwool, density 120 kg/m2 / aluminum honeycomb |
| Suspension | Galvanized treated rods |
| Panel connections | Aluminum profiles |
| Allowed surface load | 150 kg/m2 |
| Sound isolation | > 35dB |
| K-value | 0.0952 Wm-2K-1 |
| Fire resistant | GB50073-2013 |
