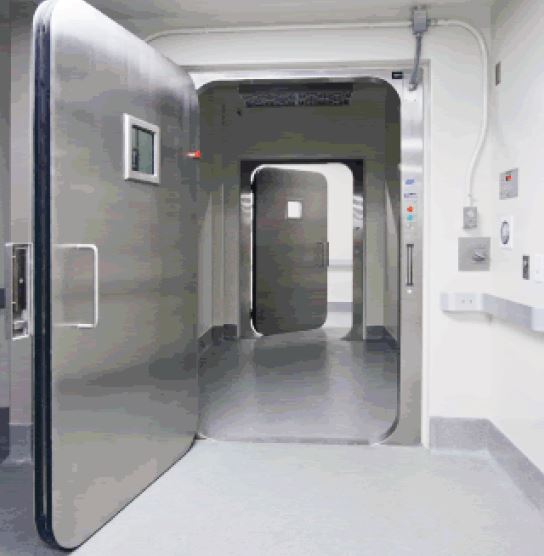

Air Tight Doors (ATD)

Global Cleanrooms developed Air Tight Door (ATD series), which are easy to operate.

ATD are applied in classified cleanroom areas to create and ensure fully protected gastight zones, and isolate areas from each other to prevent cross contamination or gas exhaust.

ATD are used in many manufacturing industries like Biotech/Pharma/Bio-safety Laboratories and nuclear facilities. The ATD sytem uses Siemens S7-1200 to achieve Air Tight door interlock and fumigation function. The touch screens which are installed beside the ATD are used to monitor system operation and to change settings.

Category:
  Download Brochure

Additional information

Door frame & door leaf

Stainless steel 304/316 or powder coated in any RAL color to ensure good decontamination ability, welds are performed continuously and free of gaps
Sizes

According requirements
Inflatable gasket

Milaty – Q175 – FDA approved
Handle

Stanley – Stainless steel 304/316
Hinges

GCR – Stainless steel 304/316, test cycles > 200.000
Manual door closer

KABA
Vision window

Double glazed with safety glass
Push button

Omron – GQ25-11E
Emergency button

Omron – GQ25-11ZE
Indication light

Omron – GQ25-E
Magnet lock

GCR-180
Motion detector

Security – E-807N
Touch screen

Kinco – MT4523TE
Software

TIA V13 SP1
Control cabinet

GCR – stainless steel 304/316
PLC in control box

Siemens S7-1200 (customized)
Hardware

CPU1215C (according requirements)
VHP

According requirements
Clean compressed air

GCR – CCA-2D
